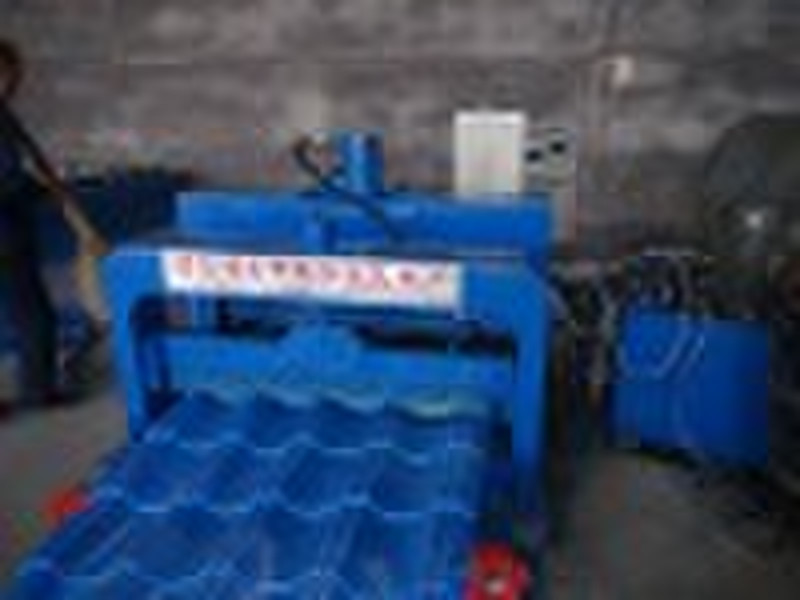

836Glazed tile roll forming machine
original price: 15 000 USD
Haixia liu
Contact person
Basic Information
glazed tile roll forming machine TY28-209-836(Glazed tiles)Main technical parameters:(1)Main motor power:3kw(2)Hydraulic station power:3kw(3)Sprocket:P-25.4(4)Forming station:9(5)Material of roll:45#steel hard chrome plate(6)Length of production line:10m(7)Installation dimension about(L*W*H):5.5*1.5*1.2m(8)Total weight:3.6T(9)Diameter of principal axis:70mm(10)Hydraulic oil pump:CB-E310(11)Material of blade:Cr12(12)Thickness: 0.2-0.7mm(13)Length of tolerance:≤1.5mm(14)Cover width:1043.02mm(15)Coil width:1250mm(16)Wave height:28mm(17)Wave length:208.6mm(18)Processing speed:1-2.5m/min(19)Equipment parts: roll forming machine, forming press system, hydraulic system, computer control
Delivery terms and packaging
Packaging Detail: according to customer's requirement Delivery Detail: 15-20 days after getting the advance payment
Port: tianjin xin port
Payment term
Letter of credit
Western Union
-
Payment Methods
We accept:
